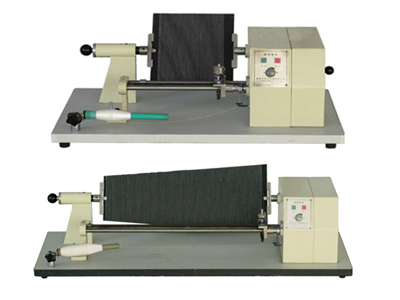

YG381/YG381A/YG381M Sample Yarn Tester

Used for reeling the cotton,man-made fiber and blending yarn to measure the show board regularity and appearance quality.

Standards:GB/T398,GB403,ASTMD2255,GB/T9996.1,GB/T9996.2,GB/T5324,FZ/T32004,FZ/T32005 etc.

Technical parameter

1.Tensile method: Pressing by grade

2.Density of reeling: 7、9、11、13、15、19radix/cm and 20radix/4.5cm density   (φ×4) There is seven grades,as follows:30、40、45、55/10cm(YG381M)

3.Rotate speed of show board: 0～350r/min

4.Power supply: AC 220V±10% 50Hz

5.Power: 90W

YG381/YG381M

Volume:710mm×450mm×270mm

N.W.:21kg

Show board specification:250mm×220mm×2mm、250mm×180mm×2mm

YG381M

Show board specification:300mm×225mm×2mm

YG381A

Volume:1065mm×450mm×270mm

N.W.:26.5kg

Show board specification:575mm×250mm×160mm×3mm
