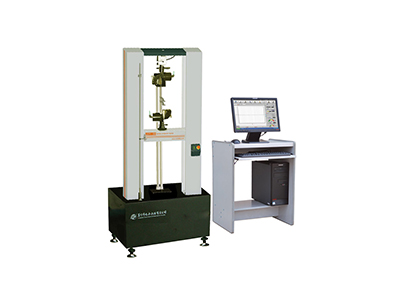

LLY-50 Electron Tension Tester

Used for testing mechanics property of the metal,rubber,wire rod,plastic,paper,packing material,buding,material,wire material,leather,canvas,high strength fabric,geotextile,non-woven fabric,carpet,rope,yarn etc,such as the test for tensile,burst ,shear,compressure,bend,tear,creep,elasticity and joint seem etc strength performance test.

This test’s transmission system consist of high-precision balls crews and high-strength smooth-stick,the drive system make up servo-drier and servo-motor,the computer is master control unit that to perform data acquisition,processing and analysis,testing parameters adjusting,measurement status controllde,results browse and printing.

Standards:GB、QB、FZ/T、ASTM、ISO、AATCC etc

Technical parameter

1.Output mode: The data process of statements and figures are made by computer and its results are displayed or printed

2.Working pattern: Pulling,bursting,pressing and sharing

3.Range grade: 10KN、20KN、50KN

4.Tensile speed: 0.01～1000mm/min

5.Max stretching display valve: 800mm

6.Power supply: AC220V ±10% 50Hz 7.

7.Power: 2.3KW

Volume:1040mm×680mm×2160mm

N.W.:365kg

Packing dimension:1200mm×800mm×2300mm
