LELOT+YG061Z Automatic Electronic Single Yarn Strength Tester

YG061Z Automatic Electronic Single Yarn Strength Tester

The tester adopts the CRE mechanism and controlled by microc-omputer.The results can be not only printed but also displayed with LCD.It can be choose test speed automatically and track the 10s or 20s timing breakage.Also the speed can be set freely when carrying out the constant speed elongation test.Pneumatic clamp is no harmful to yarn.The setting for collect waste yarn can make the lab clean.It can be connected with microcomputer and store the data forever.

Standards:GB/T3916、ISO2062、GB/T14344、GB/T398、GB/T5324 etc.

Technical parameter

TypeYG061Z-30YG061Z-60YG061ZRaw-silk
Measurement range3000cN6000cNRange of strength:0~999.9cN、0~6000cN
Guang250mm、500mm
Pre-tension1cN~100cN
Measure precision±0.5%
Range of elongation(500mm Guang)Max80%
Drawing speed50mm/min~5000mm/min
Testing times1~400times
Interval print2~60setting range
Yarn density(tex)1~999.9setting range
Power supplyAC220V±10% 50Hz
Power280W
Air compression(for choice)Operation pressure 0.4MPa~0.8MPa
Connect PC(for choice)It can add more Fuctions

Volume:555mm×430mm×1495mm

N.W.:121kg

Packing dimension:

700mm×580mm×1640mm(Mainframe)

528mm×448mm×308mm(Printer)

660mm×420mm×520mm(Accessories)

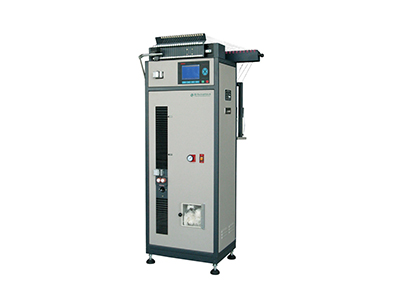

YG061Z Automatic Electronic Single Yarn Strength Tester.jpg
